RaceTEX Fiberfil Products

Continuous Filament High Temperature Fibers for Bulk packing

Describe some quality or feature of the company. Write a short paragraph about it and choose an appropriate icon.

Short title

Product Differentiators

Optimized bulk density for thermal and acoustical insulation, and fiber entanglement to maximize the durability in application.

Product Overview

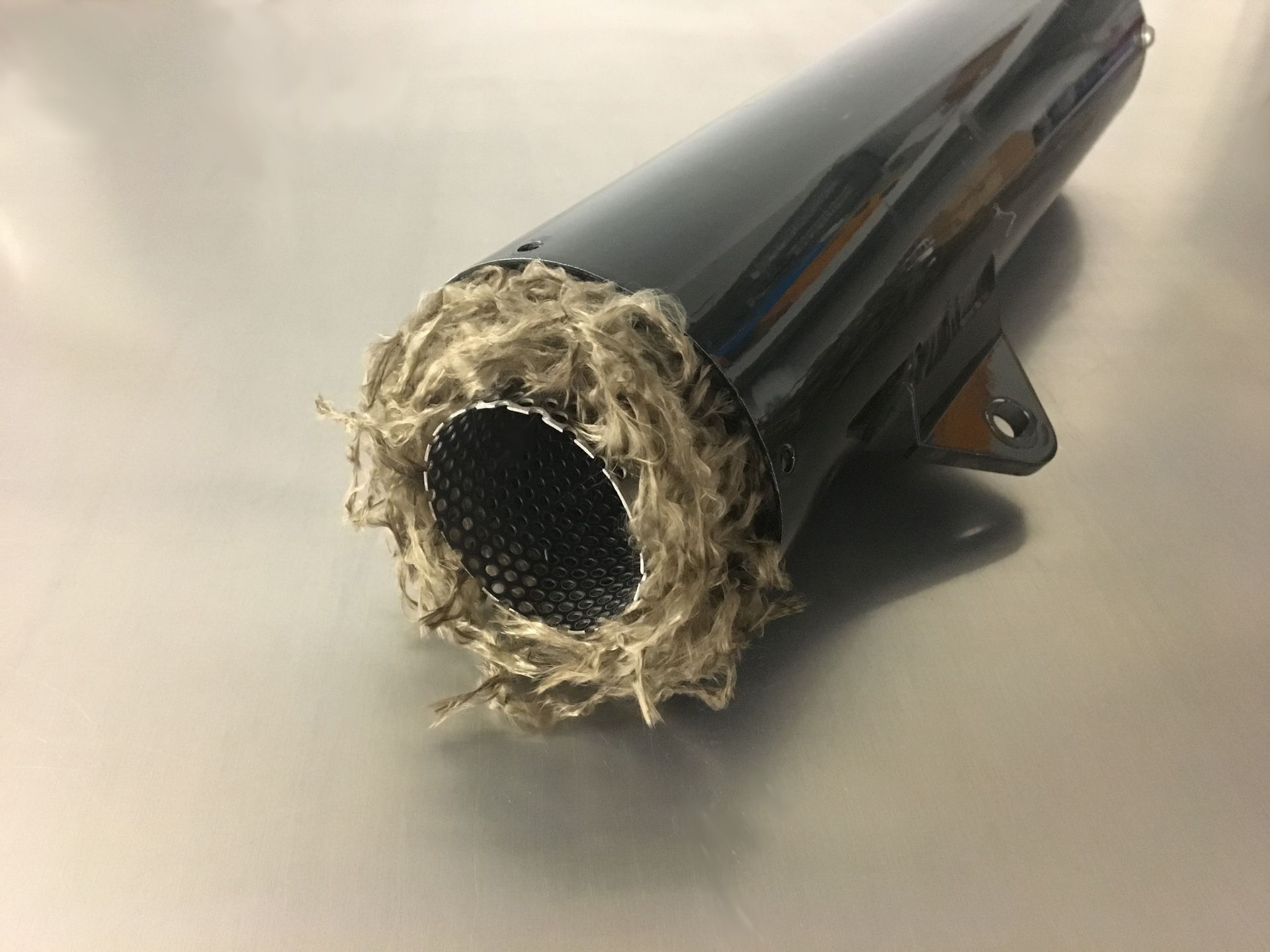

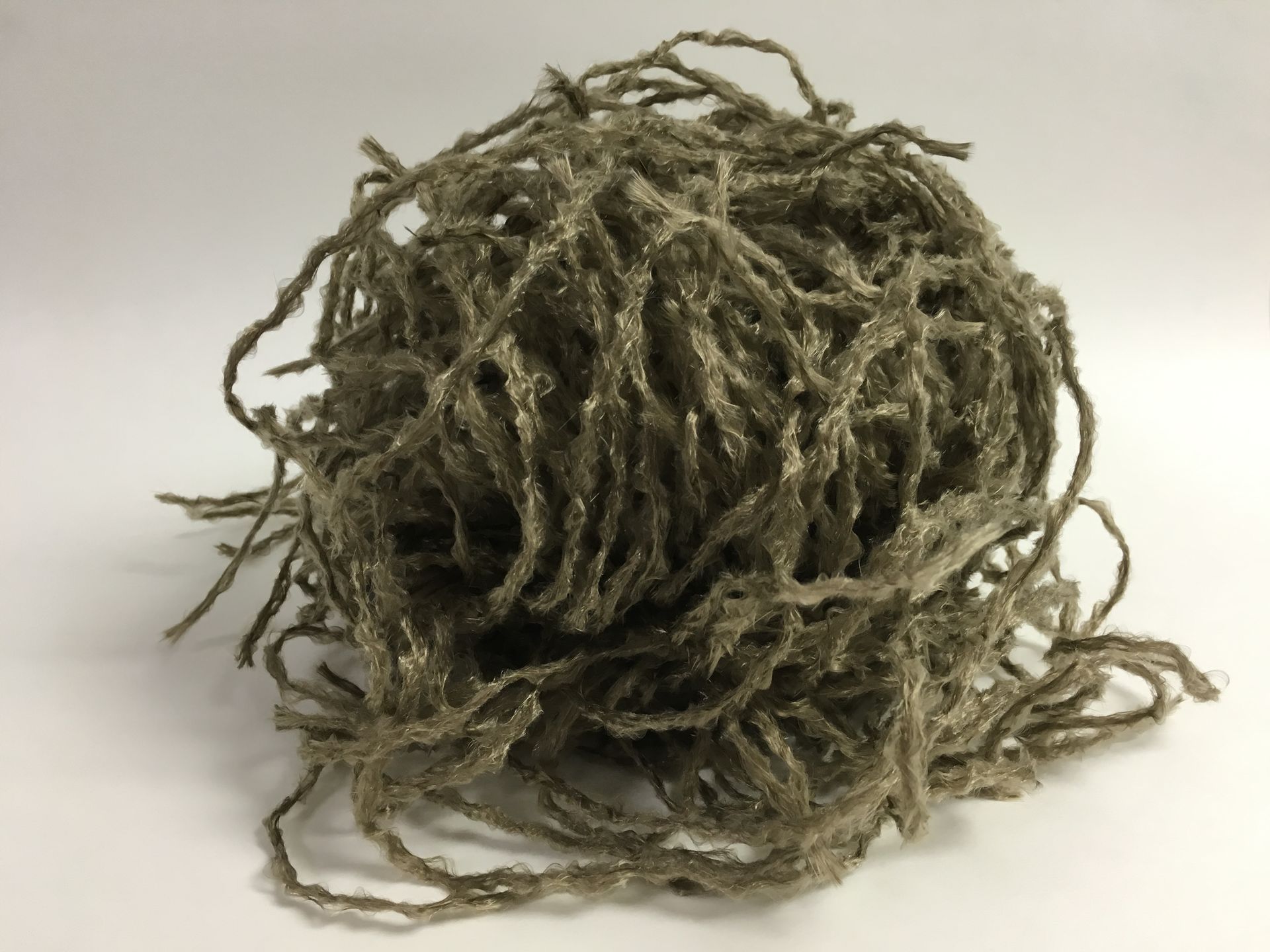

RaceTEX FilFibers are made with continuous strands of high quality high temperature fibers, of various chemistries, comprised of hundreds of filaments, which have been volumized and texturized to optimize the thermo-acoustical properties for insulation in direct flow and hybrid, high performance muffler designs without compromising the durability of the packing


Key Features & Benefits

SDS (Safety Data Sheets)

  • Can be hand packed or machine auto-filled

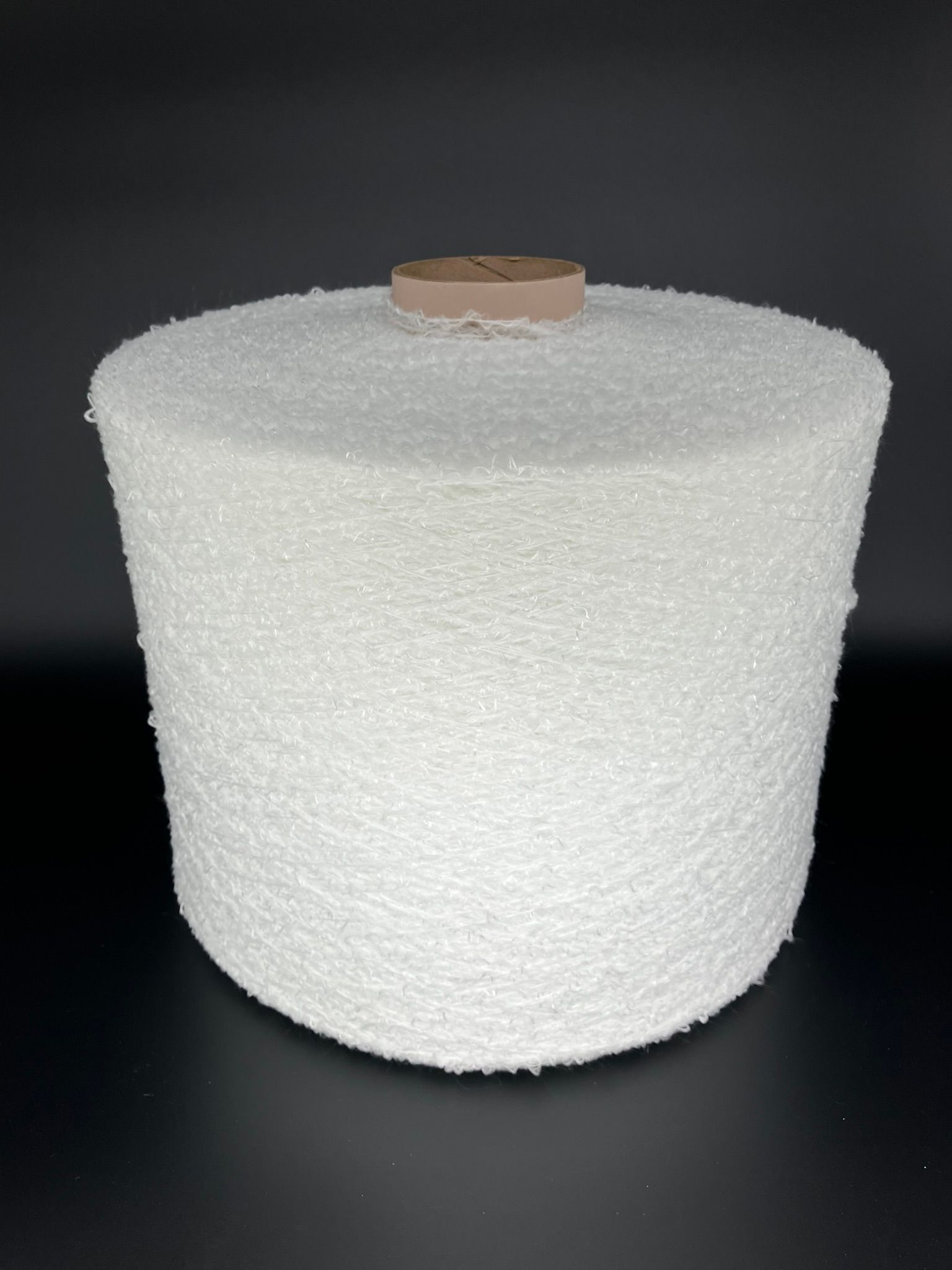

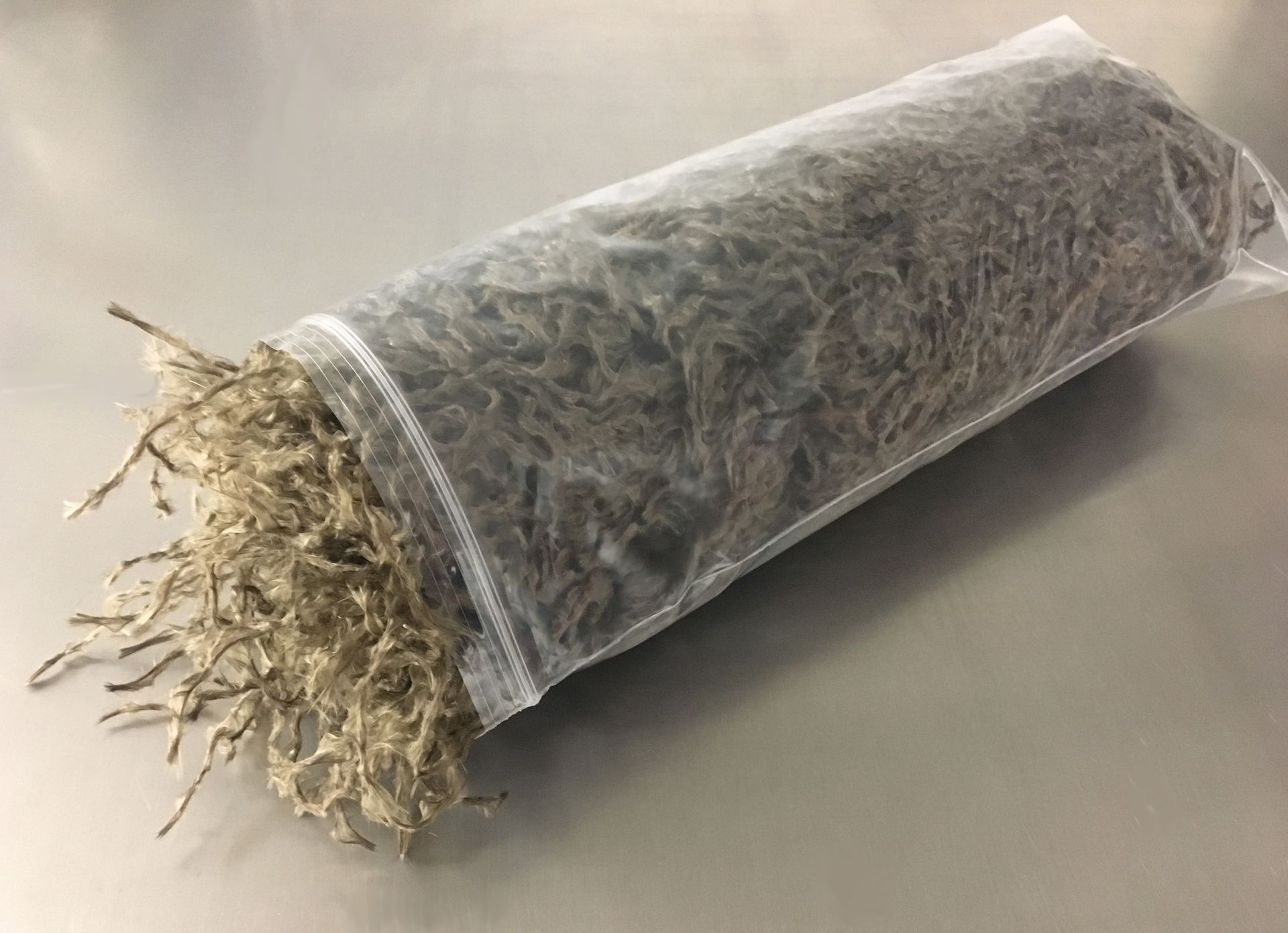

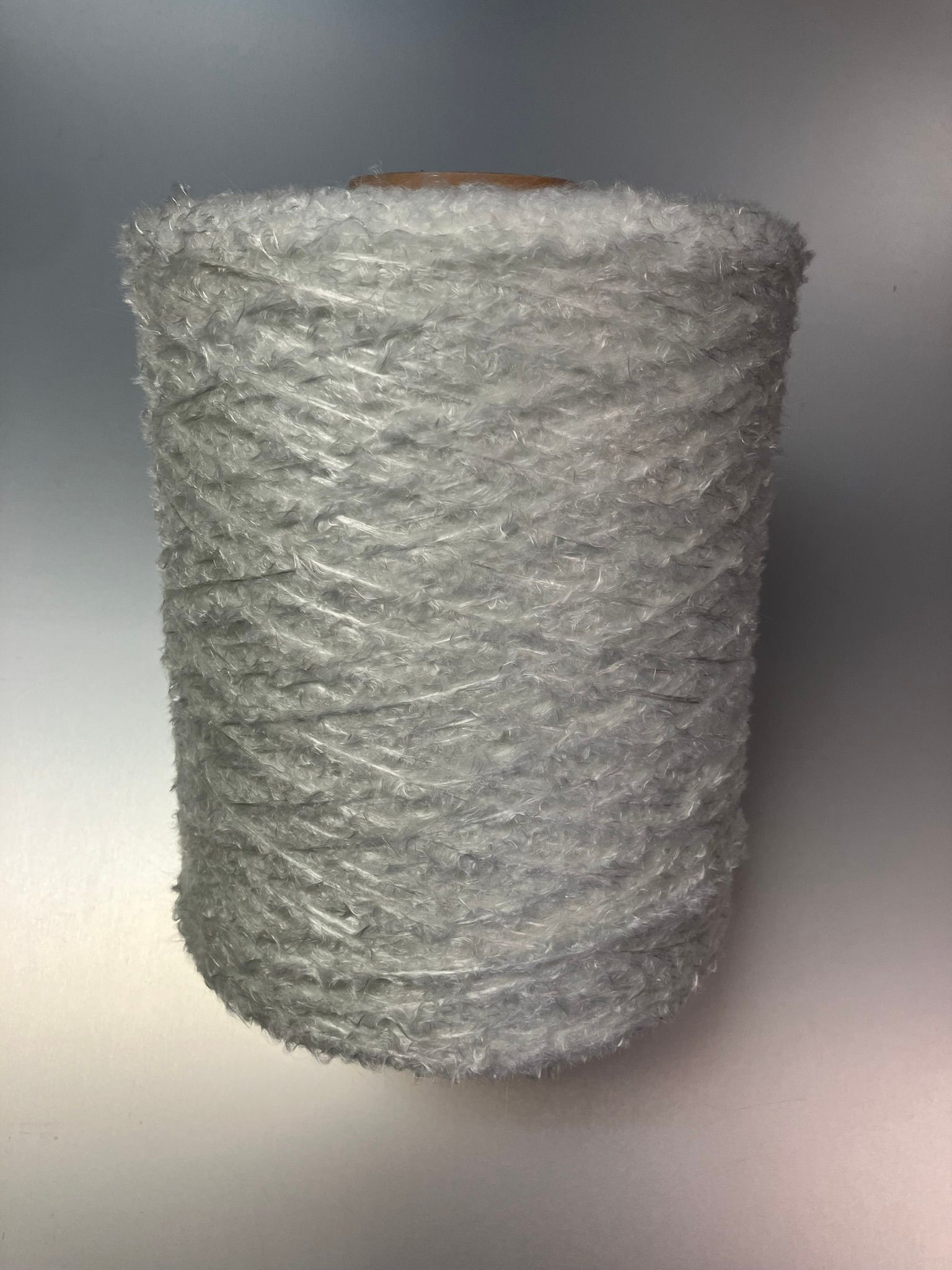

  • Available on spools, loose fill boxes and pre-weighted poly-bags
  • Universal fit for MRO and DIY application

Fil Fiber Options

Fiber Materials E-Grade Fiberglass ECR-Grade Fiberglass Basalt Fibers S-Grade Fiberglass 400 Series Stainless Steel Fiber HD Stainless Steel Fiber
Maximum Application Temperature 5930℃ 6980℃ 7200℃ 8000℃ 9270℃ 12600℃
Average Fiber Diameter 9 microns 9 & 13 microns 9 &13 microns 9 & 24 microns 70 & 100 microns 30 & 50 microns
Average Loft (Compression Resistance) 11cm 13cm 13cm 14cm NA NA
Recommended Packing Density 150 - 300 grams per liter 150 - 300 grams per liter 150 - 300 grams per liter 150 - 300 grams per liter 500-1000 g/m² 500-1000 g/m²
Sound Absorption Good Excellent Good Excellent Good Good
Insulation Value Excellent Excellent Excellent Excellent Conductive Conductive
